i-Swim Mobile Pool Lift
The i-Swim is a portable pool lift that has been designed to allow users to get into a pool at any location with ease.
The i-Swim pool lift is an attractive and user-friendly attendant-controlled portable device that grants disabled users or those with limited mobility access to swimming pools safely. In addition, its cost-effectiveness makes the i-Swim a popular choice for many people – making it one of our most sought-after portable pool lifts!

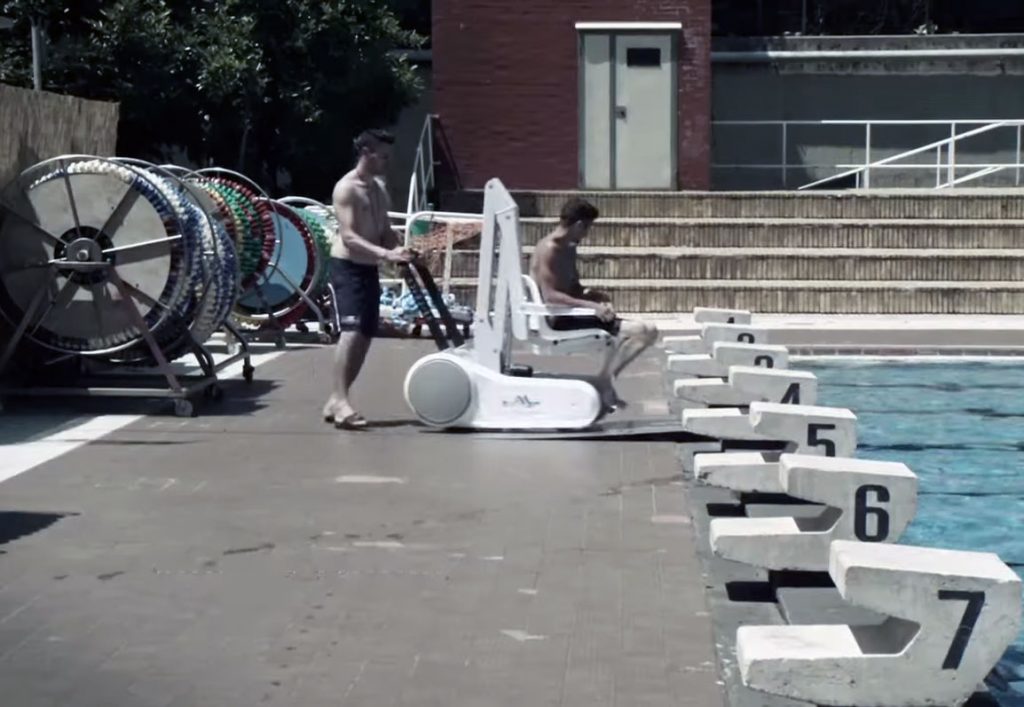

To use the lift, an attendant should place the pool hoist into its designated area while a person requiring assistance is seated in their chair.
Once the pool lift is situated correctly, engage the brake and activate the anti-tip stabilization system by pressing a button on the hand control to ensure optimal safety.

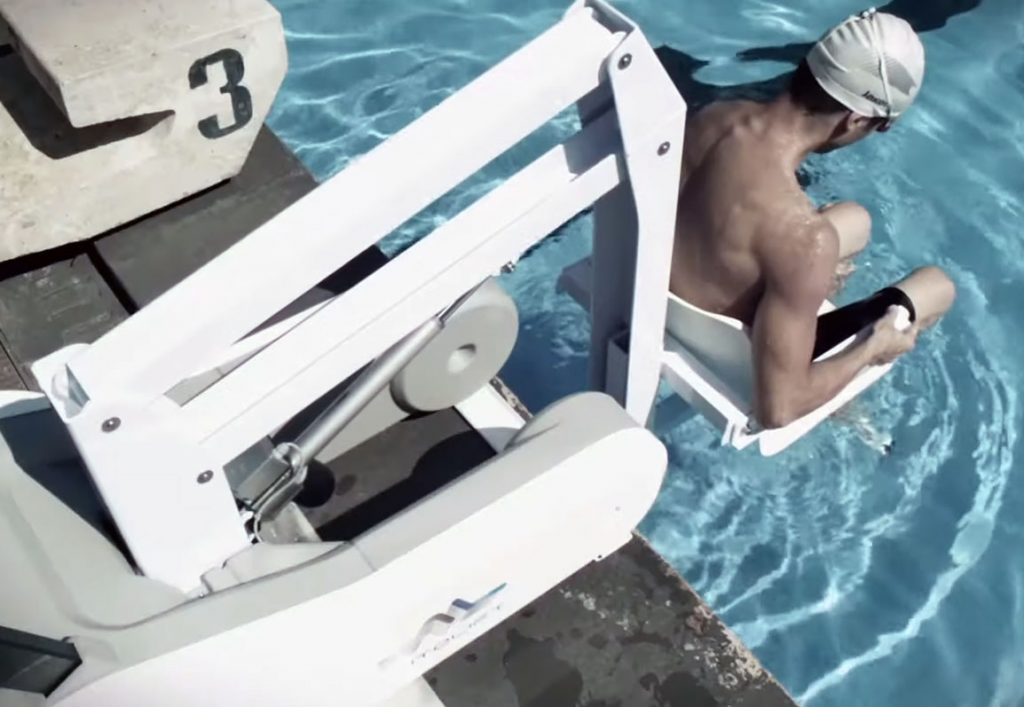

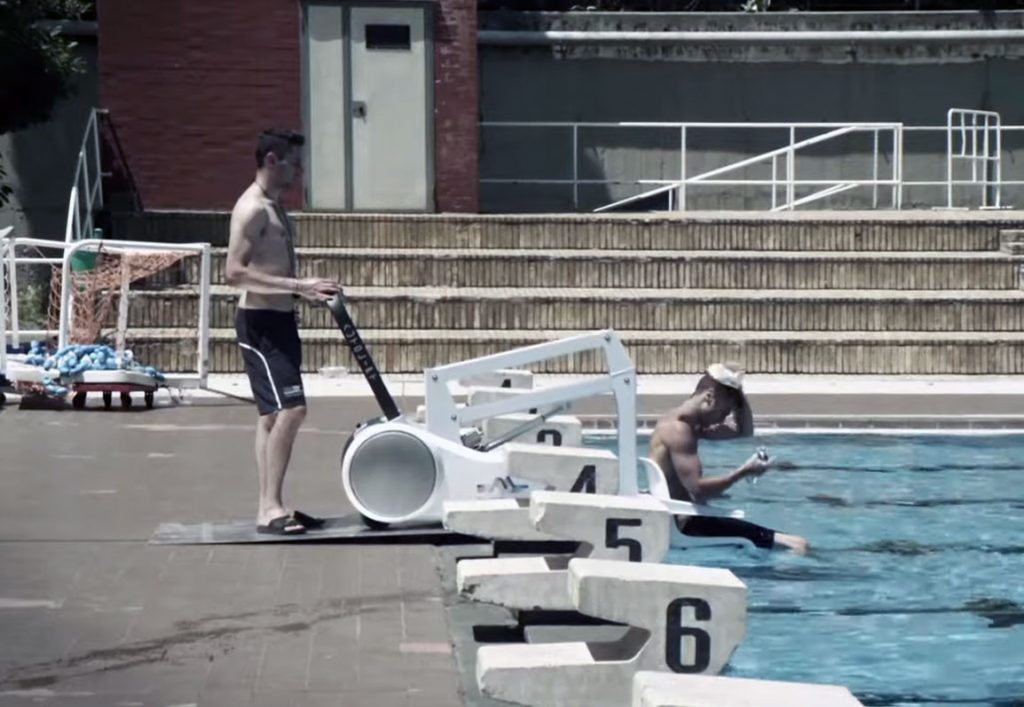

The swimmer is then cautiously lowered into the pool, and given the option to either self-navigate or be met by a carer in the water if more assistance is needed.
i-swim Configurations

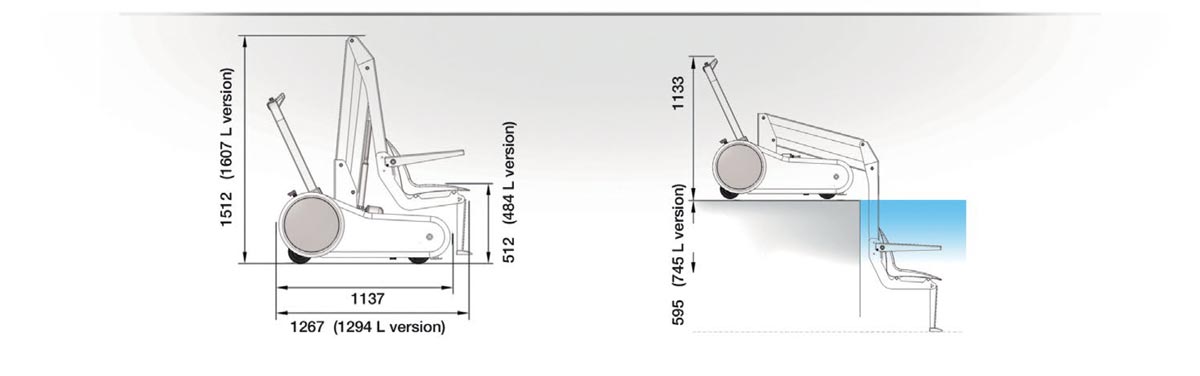

Dimension & Travel
| Specifications | i-swim | i-Swim L |
|---|---|---|
| Lenght | 1267 mm | 1294 mm |
| Width | 640 mm | 640 mm |
| Height | 1512 mm | 1607mm |
| Seat max height | 512 mm | 484mm |
| Seat travel down | 595 mm | 745 mm |
Feature / Technical Specifications
| Structure Materials | Aluminum / Stainless Steel |
|---|---|
| Nr of Wheels | 4 (2 with brake) |
| Lifting structure | Parallelogram |
| Painting | Powder Coating |
| Safety | Anti-Tip and Stabilizing System – Patented |
| Lifting Capacity | 136 Kg (120 Kg i-swim L) |
| Own Weight | ca. 140 Kg |
| Voltage | 24V |
| Battery datas | 2 Batteries – 2 x 18Amp |
| Battery Working range | 50 Cycles approx |
| Battery Charger | Included |
| Instruments (on Handrail) | Battery Load Indicator Up-Down Push Buttons Emergency Stop Button |
