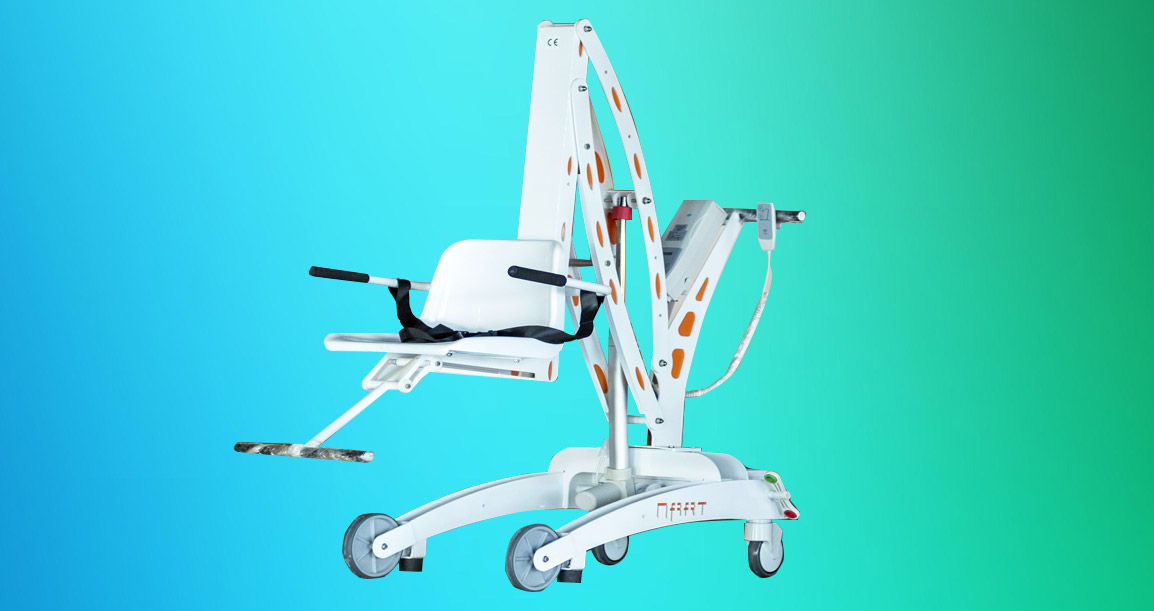

Eco Pool Lift

Developed to solve the problems related to water accessibility in a cost-effective way. We focused on the ESSENTIAL elements to ensure good performance in terms of reliability and safety for the users at a reasonable cost.

Lifting Capacity: 136kg
Max arm travel: 1260 mm
Depth of seat inside the water : 650 mm
Time of lowering with weight: 20 sec

Time of lifting with weight: 25 sec
Weight of the machine : 135 kg
Battery: 12 V
Power: 24 V

Technical specifications
- Lifting capacity 150 kg
- Max arm travel: 1500 mm
- Depth of seat inside the water : 900 mm
- Time of lowering with weight: 25 sec.
- Time of lifting with weight: 18 sec
- Weight : 260 kg
- 2 speed automatic handling
- Autonomy: 100 working cycles
- Automatic helm, forward motion by up and down control lever
- battery charge level indicator and emergency button
- Rotating drive wheel radius: 200°
- Hydroelectric box
- Manual emergency operation system in case of damage to electric system
- Automatic braking system integrated in the wheel
- Safety braking system by means of automatic stoppers to prevent from
- Infrared ground detector
- Safety motion system by means of vertical hem switch off
- Battery 12V
- Power 24 V
- Battery charger
- Zinc coated steel frame + 180° powder coating finish
- 2 point safety belt
- Headrest
- Removable leg holder
Optional
- 4 or 5 point safety belts
- Ground fixing kit
- Handset to control up and down movements
- Cover
Certifications & Patents
- Patent Pending MN2013U1
- Directive 93/42/CEE – Medical Device
- Directive 2006/42/CE – Machine Directive
- Directive 2004/108/EC – EMC Electromagnetic
- Compatibility
- European registered design N.0021782020001
